AMS 2710 - Pressure Sensor Module with 0 ... 10 V Output

Overview
Pressure Ranges
Accessories
Documents
Inquiry / Samples

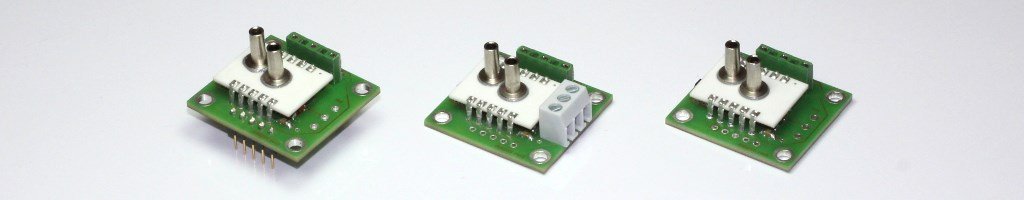

Different types of the pressure sensor module series AMS 2710 with analog voltage output.
AMS 2710 is a series of universal, ready-to-mount OEM pressure sensor modules with 0 ... 10 V output available in various pressure ranges and configurations for the electrical connection. With the large supply voltage range of 12 ... 36 V the pressure sensor modules are especially suitable for industrial applications. Due to the extensive calibration and temperature compensation AMS 2710 allows precise pressure measurements in a wide temperature range of -25 ... 85 °C.

Short Specifications

Pressure Ranges*bidirectional differential:-5 ... 5 mbar up to -1000 ... 1000 mbar
differential / gage:0 ... 5 mbar up to 0 ... 2000 mbar
absolute:0 ... 1000 mbar up to 0 ... 2000 mbar
barometric:700 ... 1200 mbar
Total Error Band (TEB)
(T = -25 ... 85 °C)		2.5 %FSO (max.)for ultra low pressure ranges (≤ 10 mbar)
2.0 %FSO (max.)for low pressure ranges (≤ 100 mbar)
1.5 %FSO (max.)for standard pressure ranges (> 100 mbar)
Output Voltage0 ... 10 V
Supply Voltage12 ... 36 V DC (typ. 24 V DC)
RoHS statuscompliant (RoHS certificate)
*For detailed information on the pressure ranges in psi and mbar please see "Pressure Ranges".


General Documents

Datasheet AMS 2710
Product flyer AMS 2710



AMS 2710's Model Variants, Pressure Ranges and Ordering Codes

For product inquiry choose your desired products and choose "Go to contact form". You will be redirected to the inquiry form then.

Differential Pressure Sensors

Pressure Sensor Module (ordering code)Pressure typePressure range
in mbar		Pressure range
in psi		Inquiry
Ultra Low Pressure
AMS 2710-0005-D-1differential / relative0 ... 5 mbar0 ... 0.0725 psi
AMS 2710-0010-D-1differential / relative0 ... 10 mbar0 ... 0.1450 psi
Low Pressure
AMS 2710-0020-D-1differential / relative0 ... 20 mbar0 ... 0.2901 psi
AMS 2710-0050-D-1differential / relative0 ... 50 mbar0 ... 0.7252 psi
AMS 2710-0100-D-1differential / relative0 ... 100 mbar0 ... 1.450 psi
Standard Pressure
AMS 2710-0200-D-1differential / relative0 ... 200 mbar0 ... 2.901 psi
AMS 2710-0350-D-1differential / relative0 ... 350 mbar0 ... 5.076 psi
AMS 2710-0500-D-1differential / relative0 ... 500 mbar0 ... 7.252 psi
AMS 2710-1000-D-1differential / relative0 ... 1000 mbar0 ... 14.50 psi
AMS 2710-2000-D-1differential / relative0 ... 2000 mbar0 ... 29.01 psi
All differential pressure sensors can be used as relative pressure sensors for the measurement of pressure and vacuum.


Bidirectional Differential Pressure Sensors

Pressure Sensor Module (ordering code)Pressure typePressure range
in mbar		Pressure range
in psi		Inquiry
Ultra Low Pressure
AMS 2710-0005-D-B-1bidirectional differential-5 ... 5 mbar-0.0725 ... 0.0725 psi
AMS 2710-0010-D-B-1bidirectional differential-10 ... 10 mbar-0.1450 ... 0.1450 psi
Low Pressure
AMS 2710-0020-D-B-1bidirectional differential-20 ... 20 mbar-0.2901 ... 0.2901 psi
AMS 2710-0050-D-B-1bidirectional differential-50 ... 50 mbar-0.7252 ... 0.7252 psi
AMS 2710-0100-D-B-1bidirectional differential-100 ... 100 mbar-1.450 ... 1.450 psi
Standard Pressure
AMS 2710-0200-D-B-1bidirectional differential-200 ... 200 mbar-2.901 ... 2.901 psi
AMS 2710-0350-D-B-1bidirectional differential-350 ... 350 mbar-5.076 ... 5.076 psi
AMS 2710-1000-D-B-1bidirectional differential-1000 ... 1000 mbar-14.50 ... 14.50 psi

Absolute Pressure Sensors

Pressure Sensor Module (ordering code)Pressure typePressure range
in mbar		Pressure range
in psi		Inquiry
Standard Pressure
AMS 2710-1000-A-1absolute0 ... 1000 mbar0 ... 14.50 psi
AMS 2710-2000-A-1absolute0 ... 2000 mbar0 ... 29.01 psi

Barometric Pressure Sensors

Pressure Sensor Module (ordering code)Pressure typePressure range
in mbar		Pressure range
in psi		Inquiry
Standard Pressure
AMS 2710-1200-B-1absolute700 ... 1200 mbar10.15 ... 17.40 psi
