AM460 - Industrial Amplifier and Voltage-to-Current Converter IC

Overview
Details
Accessories
Documents
Inquiry / Samples
Package variants of the V/I-converter and voltage amplifier IC AM460
AM460 is an amplifier and voltage-to-current converter IC especially for industrial applications. It is suitable for single-ended input voltages and generates both a voltage and a current output signal. Its modular design, integrated voltage and current source as well as its protection functions allow a multitude of applications.

Applications

  • Sensor signal-conditioner
  • Current-loop transmitter
  • Front and back end IC for µC
  • Protected output stage
  • Industrial network driver
  • Industrial process control

  • Sensor signal-conditioner
  • Current-loop transmitter
  • Front and back end IC for µC
  • Protected output stage
  • Industrial network driver
  • Industrial process control


Short Specifications

Supply Voltage (VCC)6 ... 35 V (typ. 24 V)
Input voltage range0 ... 5 V (single-ended)
Analog outpute.g. 0 ... 5/10 V and 0 ... 20 mA (three-wire) or 4 ... 20 mA (two-wire)
Reference voltage source5 / 10 V (max. 10 mA)
Current source0 ... 10 mA, adjustable
Temperature range-40 °C ... 85 °C
Protected against:Short circuit, reverse polarity, overvoltage
Package / Delivery formsSO16(n), on DIL16-adapter, sawn 6″ wafer on blue foil
RoHS statuscompliant (RoHS certificate)


General Documents

Datasheet AM460
Product flyer AM460 (V/I-converter)
Product flyer AM460 (Amplifier)
IC package catalog
For die size and padout please contact sales@analogmicro.de.



Typical Application Circuits with Blockdiagram

Three-wire signal-conditioner with protected voltage and current output (e.g. 0 .. 10 V & 0 .. 20 mA):
AM460 as three-wire sensor signal-conditioner with protected voltage and current output.

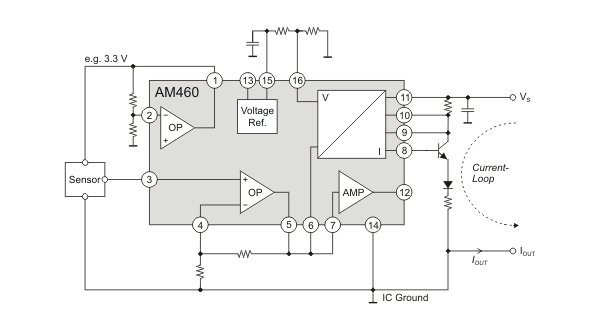

Sensor signal-conditioner with protected current-loop output (e.g. 4 .. 20 mA):
AM460 as sensor signal-conditioner with current-loop output.



Ordering Codes and Product Inquiry / Samples

For product inquiry choose your desired products and choose "Go to contact form". You will be redirected to the inquiry form then.

Order numberDelivery formInquiry
AM460-0-SO16SO16(n) package
AM460-WAFsawn wafer on 6″ blue foil
AM460-AdaptAM460 soldered to an SO16-DIL16 adapter
